iAccess i980 V3
In stock
449,00€ tax excl.
349,00€tax excl.
Risparmi 100,00€

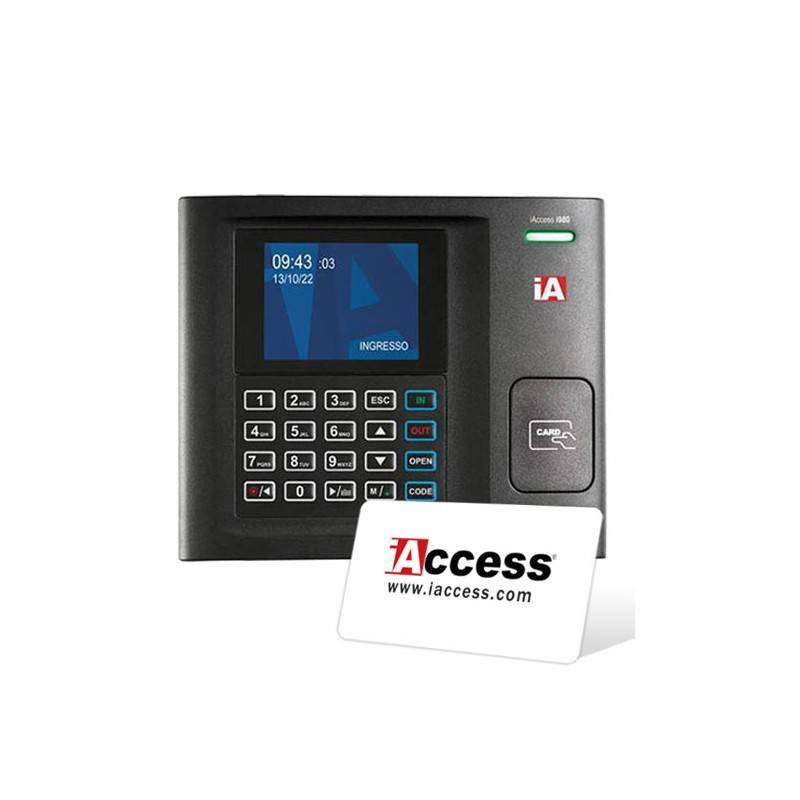

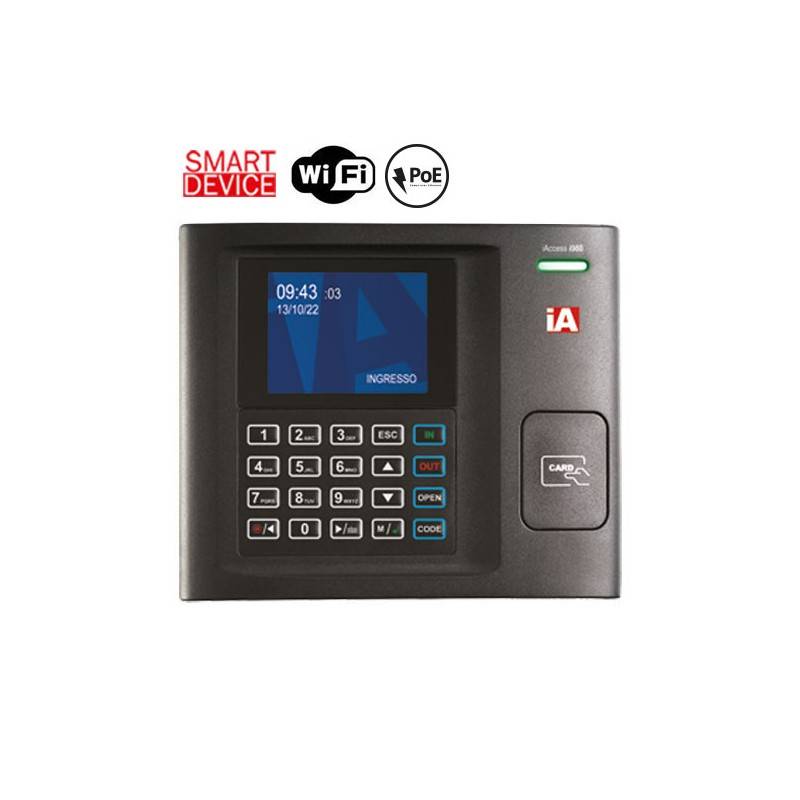

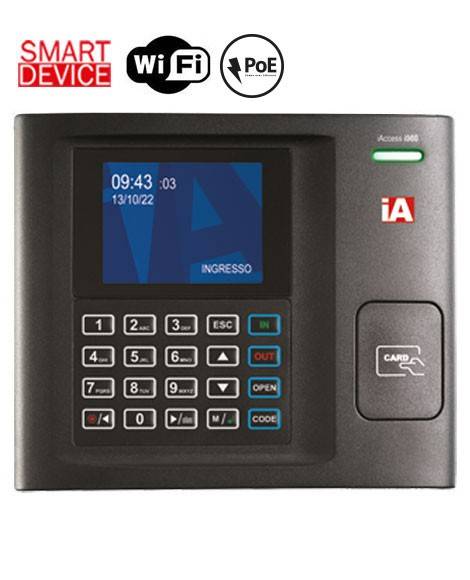

i980 V3 iAccess is a timestamp device for access control and attendance verification, equipped with RFID technology and Wi-Fi connectivity, suitable for any company and quickly installable.

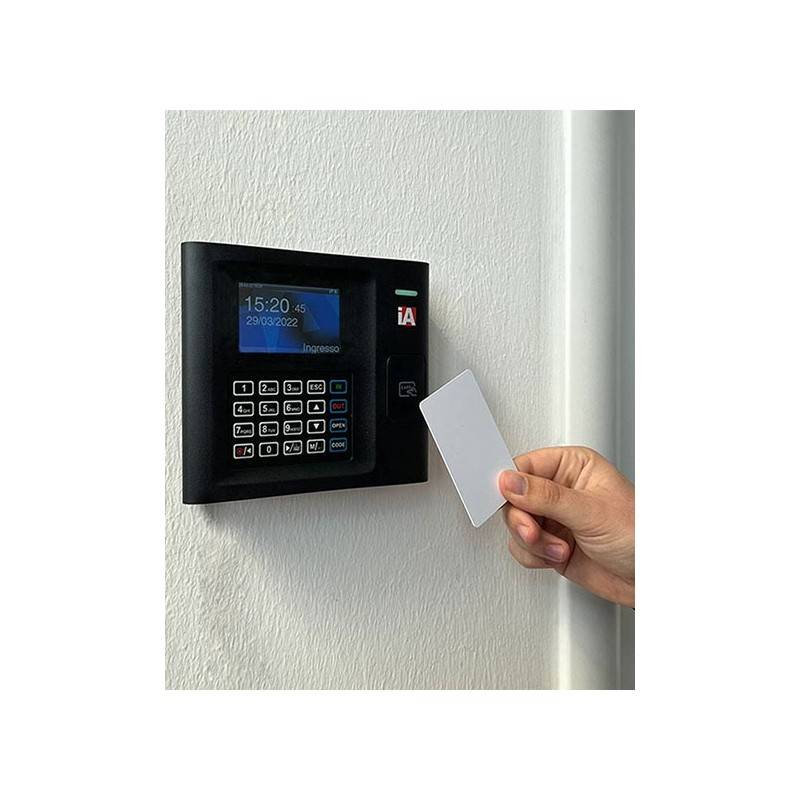

Workers can use their personal RFID badge to mark entrances and exits from the workplace, or even use their personal password.
The i980 V3 time stamping machine is included with software for the management of workers attendance TimeStudio® (No User Restrictions, Unlimited License and No Additional Fee), thanks to which it is possible to control the passages and employees timestamping , with just a few steps.
Your business infrastructure can also use more than one single iAccess i980 V3 time stampmachine to cover simultaneously multiple accesses, but all managed from a single TimeStudio® workstation.
iAccess i980 V3 has a standard 24-month warranty, with the option to extend to 36 or 60 months.
- How do I install and configure the iAccess i980 V3 time stamp?
First of all you need to install the wall terminal (using simple plugs and bracket supplied), than iAccess i980 V3 needs to be powered by electricity (the power supply is included) and connected to the company LAN network if possible.
With just a few clicks, you need to create employee profiles using the included TimeStudio® software to upload them to your device via LAN/WiFi or USB stick.
The iAccess i980 V3 time clocking machine is now ready to recognize users and record their passages. - How can I get information about my employees passages?
The supplied TimeStudio®, employee time management software provides a simple and intuitive reporting interface. With a few simple steps you can acquire, and eventually print the reports of each individual user or of an entire department.
The download/upload of data can be done via Wi-Fi, LAN network or manually, via USB Pen Drive connected to the device. - What can I do with the included TimeStudio® software?
- Acquire the complete list of workers movements in the company
- Acquire detailed reports on the attendance of each worker
- Acquire reports on door openings (access to different areas) that can be filtered even by single workers (useful in contexts with many departments)
- Manage access permissions to the departments of each individual user or type a message for one or all workers, which will be shown on the display
- Export employee attendance reports in a variety of file formats, used by most common payroll software (via SmartExportPRO® add-on module)
- Acquire reports on delays, overtime and absences of each individual worker (through TimePRO® add-on module)
- Planning of permits, shifts, feast and holidays of each individual worker (through TimePRO® add-on module)
- Marking of off-site, away / construction site or smartworking employees (via Smart Access PRO 30 add-on module)
- Essential features of i980 V3 timestamp
- Rfid Proximity Card Reader
- Integrated module for WiFi network
- Multi-language backlit colour LCD display and Touch-type multifunction keypad
- Multilingual Vocal Synthesis ITA-ING
- User recognition time less than 0.5 seconds
- Data download via WI-FI, LAN or USB
- Records up to 10,000 users and Stores up to 100,000 steps
- Buffer battery for data backup
- Automatic input/output changeover and Automatic daytime/legal time changeover
- Integrated web server for browser access
- Door opener access control with“Time Zone” function
- Possibility of activating the siren at the beginning / end of work
- "Work code" function that can be activated at the entrance and exit
- Power supply: 12Vdc 1.5A (220V power supply included)
- Operating temperature: from 0 to 45°C (only for indoor use)
- Humidity: 10 to 80% condensation-free (for indoor use only)

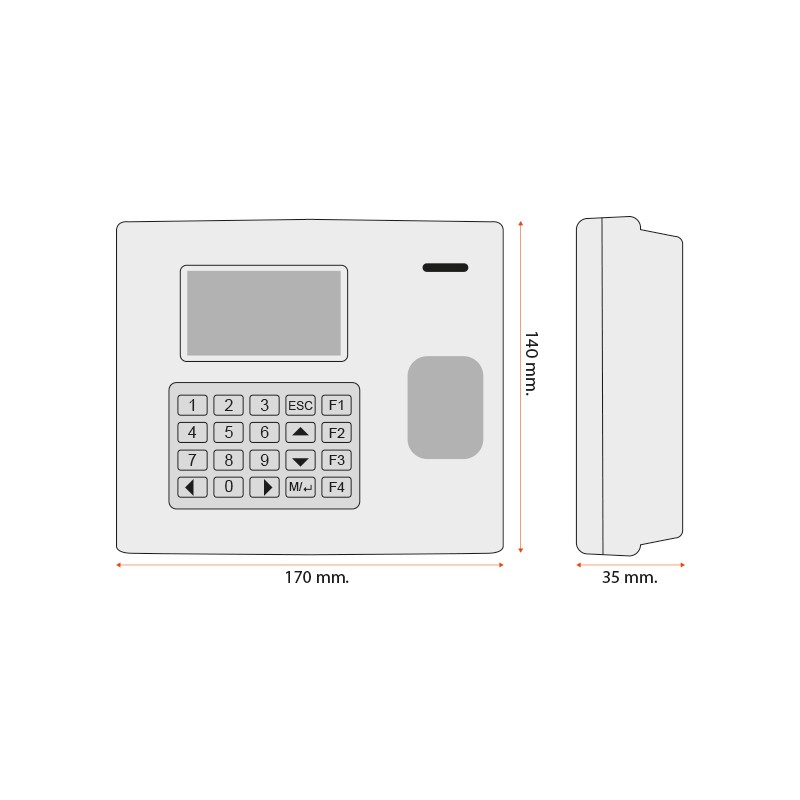

- Dimensions: 140×170×35 (AxWxD mm.)
- Weight: 500 gr
- Standard warranty: 24 month
- Standard Features
- iAccess TimeStudio® time and attendance management software with unlimited licence
- Metal bracket and wall plugs for wall attack
- Connector with door open relay or active siren
- RJ45 port of the LAN Network Card

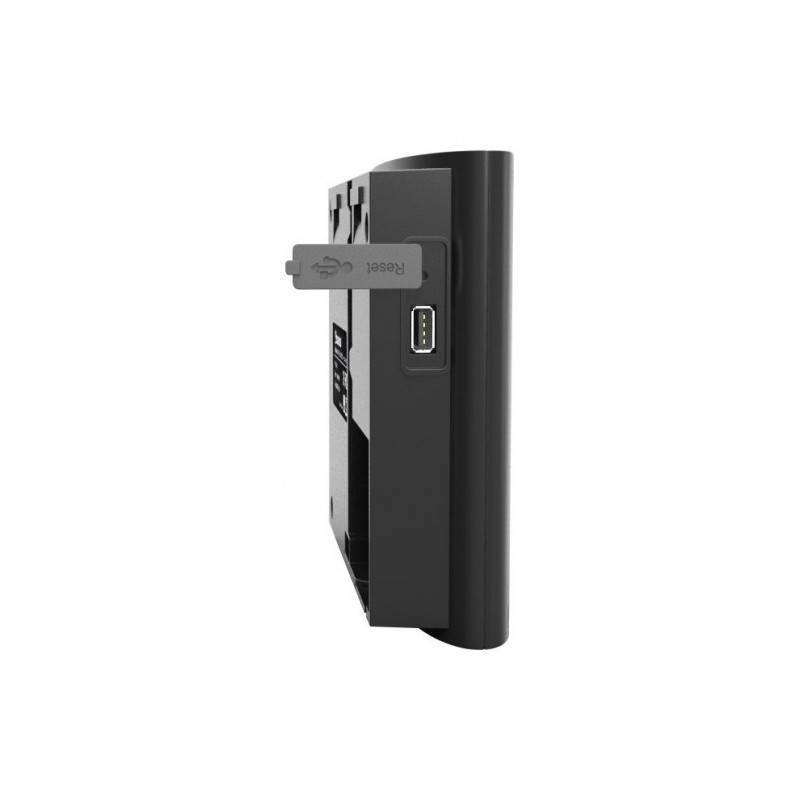

- USB port for Memory Pen Drive
- Power supply 220Vac - 12Vcc
- 1 Card Rfid iAccess
- Functional Scheme
-
Data sheet
User recognition time less than 0,5 seconds User Recognition With RFID Badge Protection For Indoors User Management Via Software Communication LAN and WI-FI Display Backlit colour LCD Voice Synthesis ITA / ENG / HUN Multilingual Download Data WI-FI LAN e USB Number of registered users 10.000 Number of recordable passes 50.000 Buffer battery for data storage Integrated Automatic change of entries / exits Yes Automatic change of day / legal time Yes Time Zone function Yes Siren Start / End of Worktime Yes Work Code function Yes Power Supply 220 V 12 Vcc, 1,5 Ah Power supply 220 V, Included Operating environment from 0 to 45°C, only for Outdoor Weight 500 gr. Dimensions 140 x 170 x 35 mm. (H x W x D) Umidity from 10 to 80%, only for Outdoor Warranty 2 years
