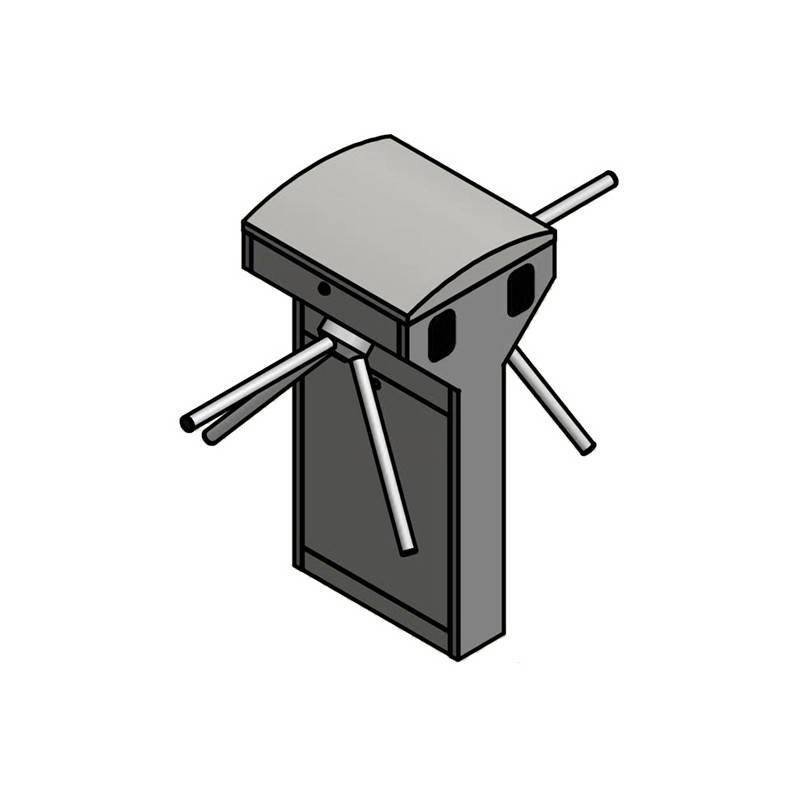

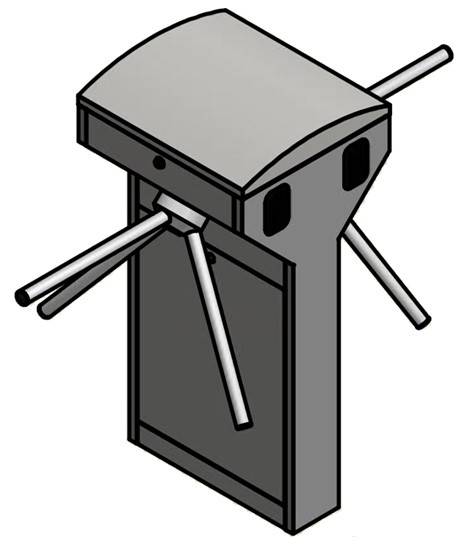

iAccess Turnstile T2L-PASS

The Bidirectional Tripod T2L-Pass Steel Turnstile is integrated into iAccess access control systems.
T2L-Pass can be used to effectively manage large people flows. This cost-effective solution offers smooth and silent operation in a compact form.

Suitable for :

• Swimming pools
• Sports centres
• Gyms
• Amusement parks
• Water parks
• Events in general
• Airports

Users can access easily using an RFID badge or the QR code previously assigned, with limited validity time.

Resistant and suitable for outdoor use. It also controls the high flow pedestrian traffic applications requiring access rapidity.

Main Specifications

• Power supply: 24V DC +20%
• Consumption: 30W
• Blocking of the passages: through the tripod arms, positioned at 120°
• Tripode arms stoper: through 24V solenoids. In case of emergency or blackout, the system is deactivated allowing the passage in both senses.
• Installation: Simple and fast, thanks to the special pedestal
• Motion Control: When the cycle starts in one direction, the reverse direction is blocked.
• Operating temperature: -20° to +70°C
• Indicators: 1 indicator light in both directions
• Dimensions: 450 x 500 x 1020 mm.
• Weight: 66 kg.
• Optional accessories: Folding tripod arms, Remote control, Coin insertion unit.
