iAccess M1-X

In stock

109,00€tax excl.



  • Shipping: 24 / 48 h.
  • Order by 15:00 and ship the same day!
  • Shipping: Express Courier

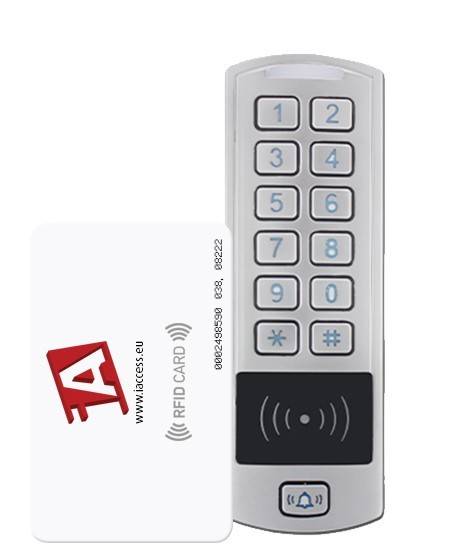

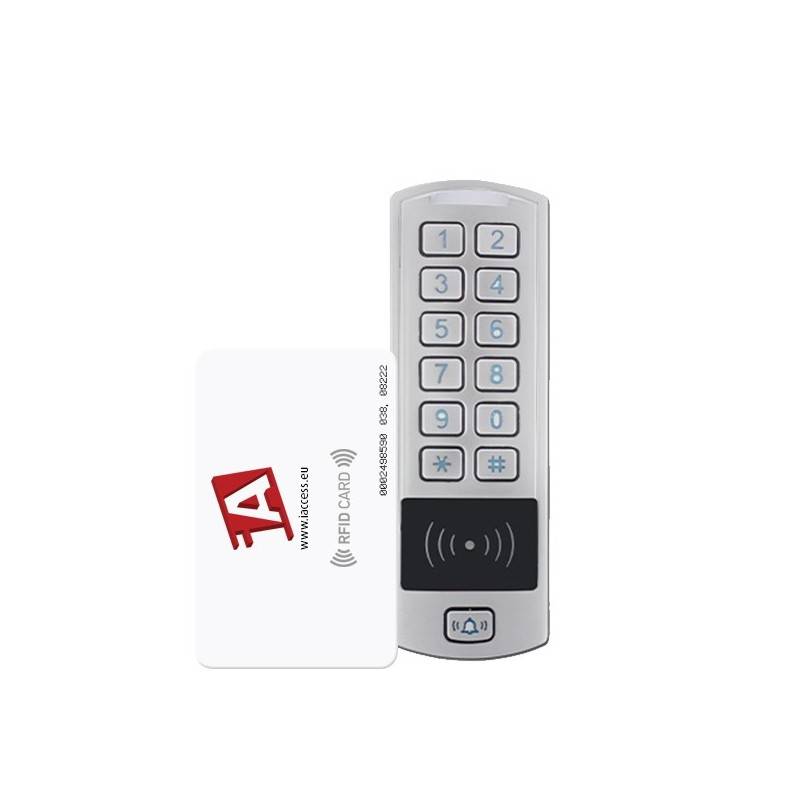

iAccess M1-X is an access control system, with a compact and pleasant design, suitable for any organization and installable in a very short time.

It allows the automatic opening of the entrance door simply by placing the RFID transponders (card or keyring) near the device or using the keypad to enter the reserved user password.

DOES NOT have any software and DOES NOT memorize the times of passage of the users

Essential Specifications

  • Multi-frequency reader of cards or key rings

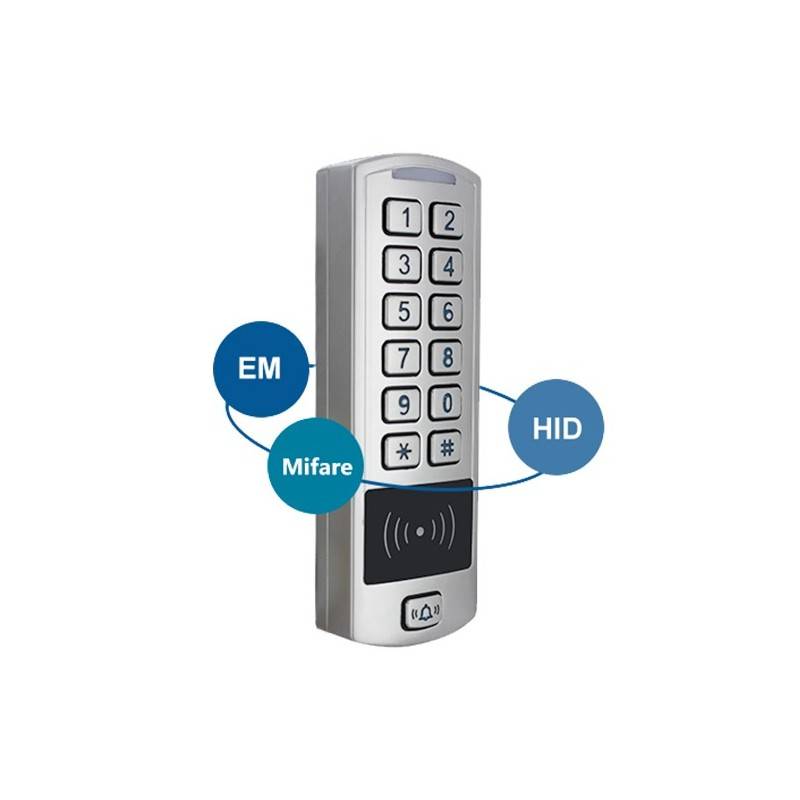

  • Supported frequency types: HID 125 Khz, EM 125 KHz, NFC/Mifare (13.56 MHz)
  • Reading distance 2~6 cm
  • Register up to 600 users (598 standard users + 2 emergency users)
  • Robust 2A door opener relay with programmable contact duration 0.5~99 seconds
  • Mechanical keypad with adjustable backlight and bell button
  • Controller Wiegand 26 bit IN & OUT
  • Wiegand 26-bit IN & OUT Controller
  • Vandal-proof and waterproof metal case with IP66 protection rating
  • Dimensions 150x51x23 AxWxD mm
  • Power supply voltage: 12~28V AC/DC
  • Temperature: -40 to 60°C

OPTIONAL 12Vdc power adapter.
