iAccess Turnstile TL-PASS View larger

iAccess Turnstile TL-PASS

In stock

  • Shipping: 24 / 48 h.
  • Order by 15:00 and ship the same day!
  • Shipping: Express Courier

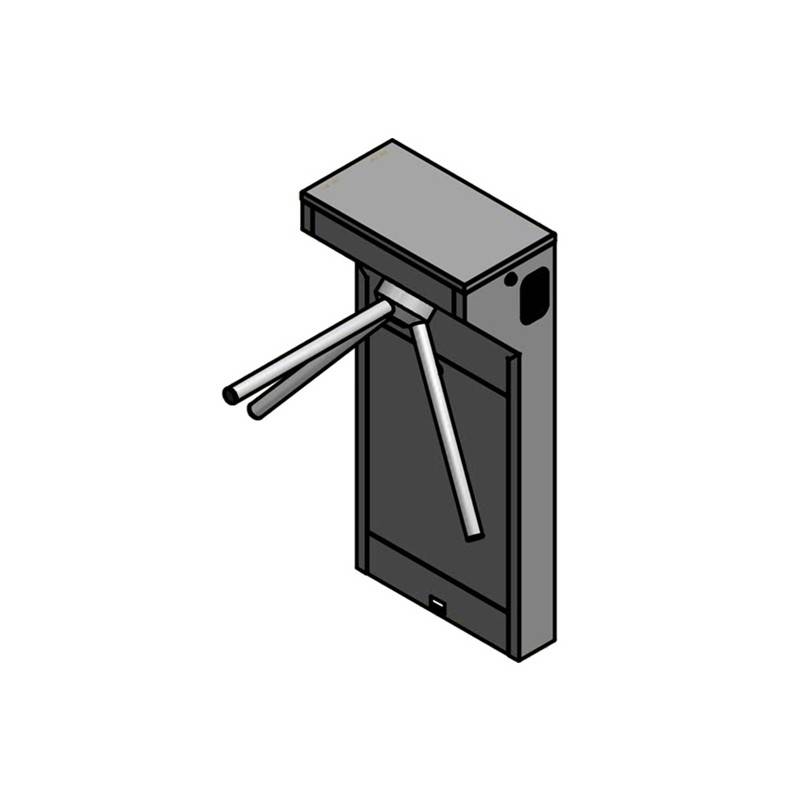

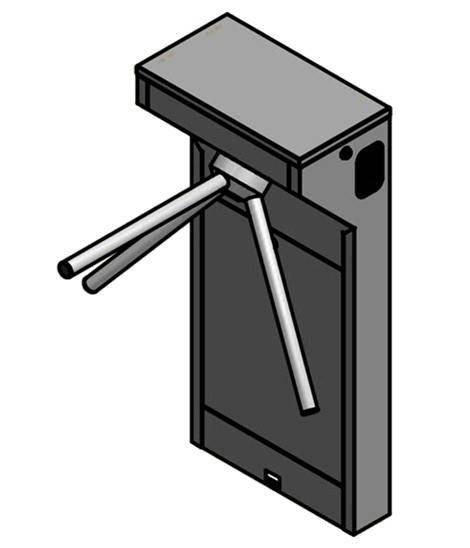

iAccess TL-Pass is a Tripod Turnstile, designed to allow easy control solutions for high flow pedestrian traffic. TL-Pass is made of stainless steel, equipped with a modern and ergonomic design.

The TL-Pass is adaptable, versatile and durable, it can also be positioned outside without any problem, and can eventually be covered after use.

Half-high turnstiles are ideal for:

  • Gyms
  • Sports Centres
  • Swimming pools
  • Mass transit stations
  • Amusement parks
  • Water parks
  • Libreries
  • Schools

Main Specifications

  • Power supply: 24V DC +20%
  • Consumption: 30W
  • Blocking of the passages: through the tripod arms, positioned at 120°
  • Tripode arms stoper: through 24V solenoids. In case of emergency or blackout, the system is deactivated allowing the passage in both senses.
  • Passage Direction Control: Free Bidirectional, Entry and Exit Control
  • Motion Control: When the cycle starts in one direction, the reverse direction is blocked
  • Installation: Simple and fast, thanks to the special pedestal
  • Working temperature: from -20° to + 70°C
  • Indicators: 1 light indicator in both directions
  • Dimensions: 290x450x950 mm.
  • Weight: 35 kg.
  • Optional accessories: Foldable tripod arms, Remote Control, Coin insertion unit.
